Derivative Analysis

Combine observation and derivative data on a single plot for more effective curve matching!

Derivative plots are useful diagnostic tools for examining the effects of wellbore storage, recharge and barrier boundaries, leakage, delayed gravity response and fracture flow.

In addition to providing this diagnostic method of analysis, AQTESOLV also lets you perform interactive visual curve matching with derivative plots to estimate aquifer properties.

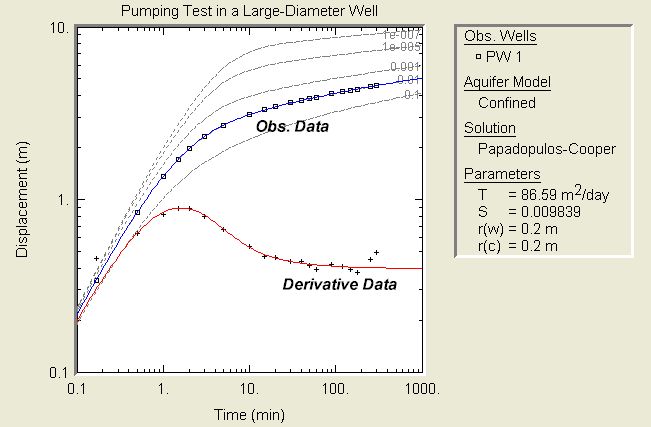

Derivative Plot Combining Observation and Derivative Data

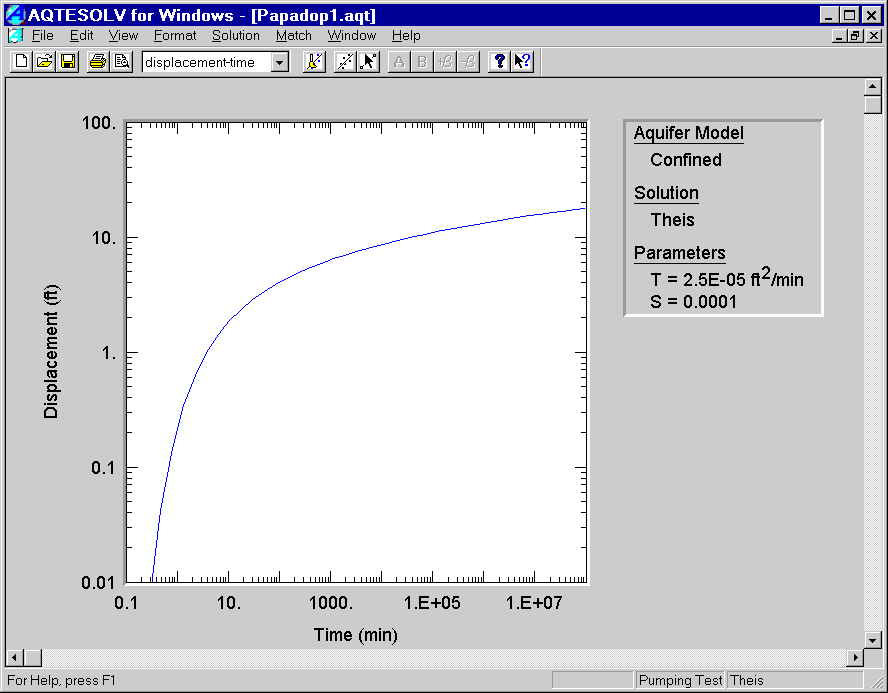

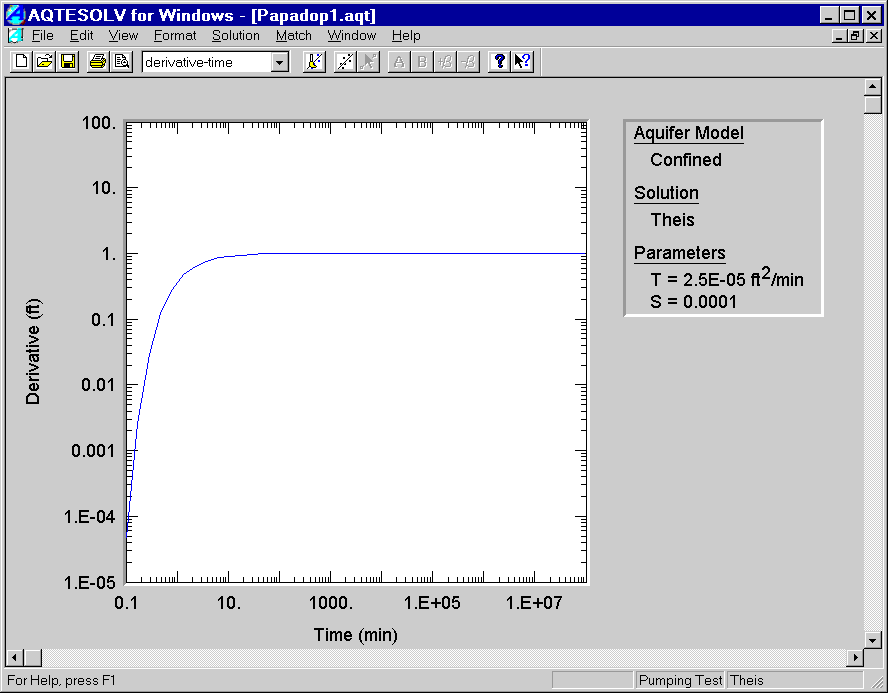

Theis Solution

The Theis (1935) solution for a pumping test in a confined aquifer assumes no wellbore storage.

*Type Curve Plot*		*Derivative Plot*

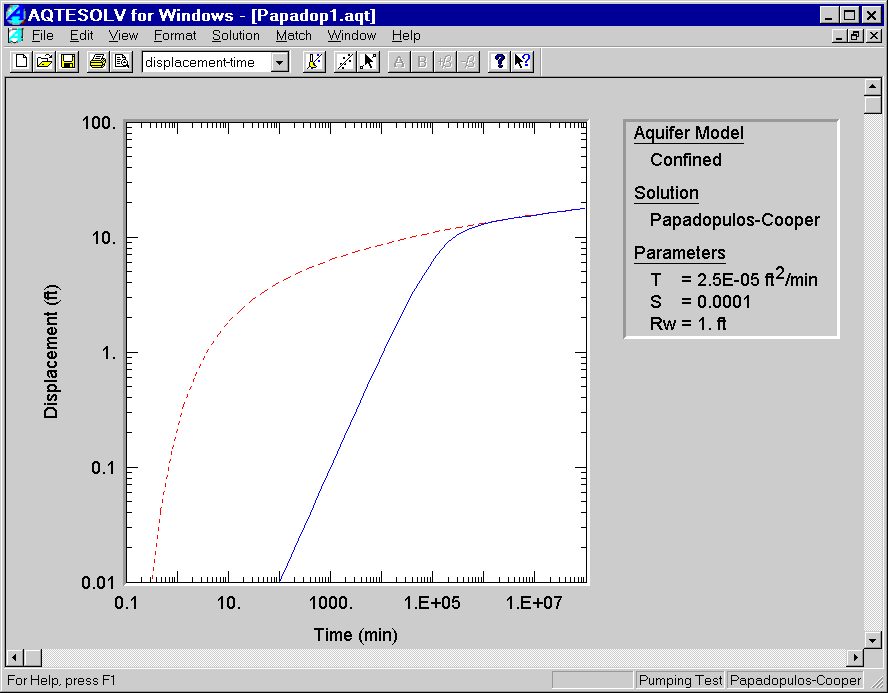

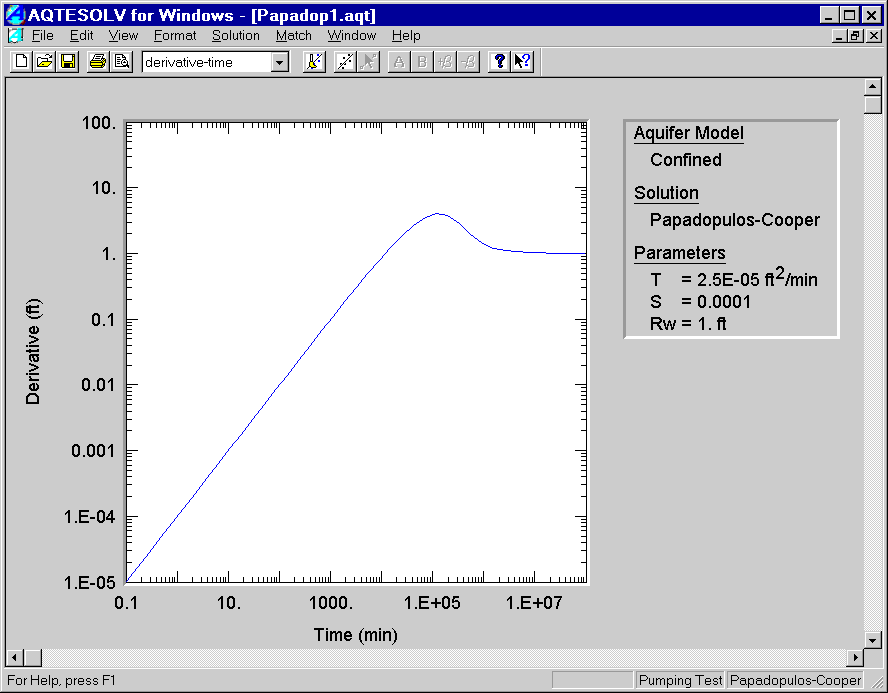

Papadopulos-Cooper Solution

The Papadopulos-Cooper (1967) solution for a pumping test in a confined aquifer includes wellbore storage.

*Type Curve Plot*		*Derivative Plot*

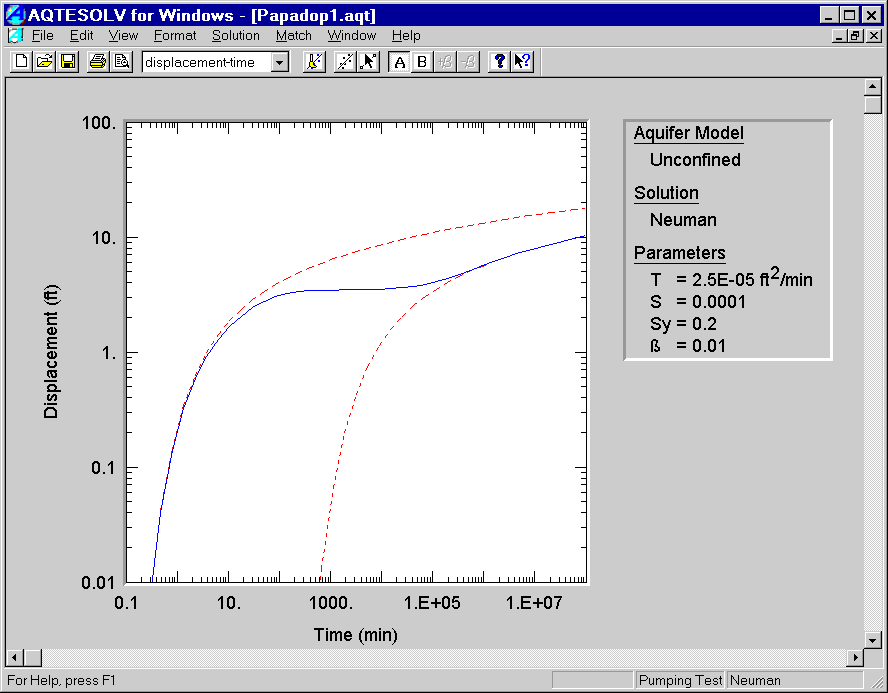

Neuman Solution

The Neuman (1974) solution for a pumping test in an unconfined aquifer includes delayed gravity response but assumes no wellbore storage.

*Type Curve Plot*		*Derivative Plot*

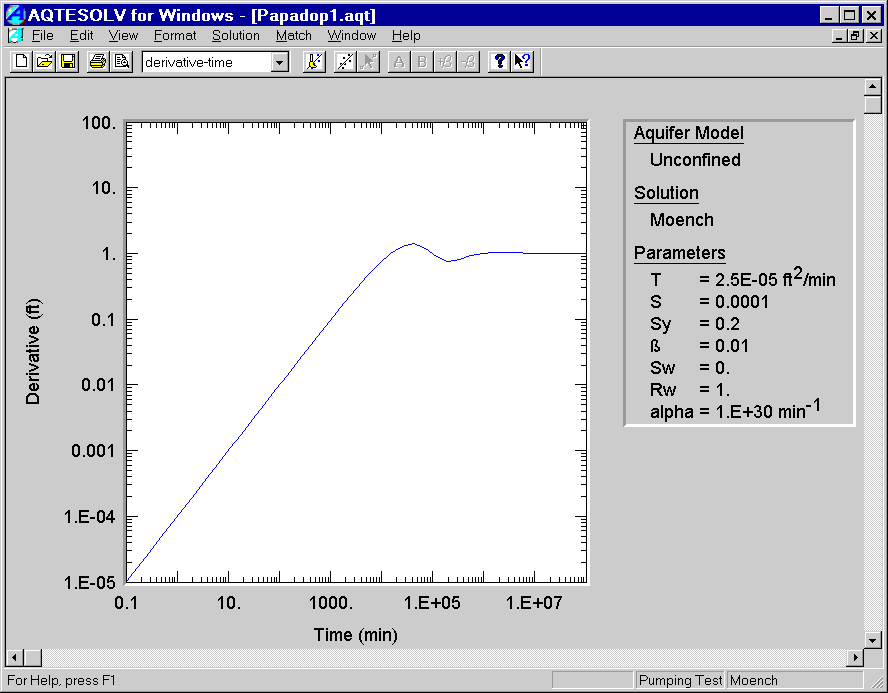

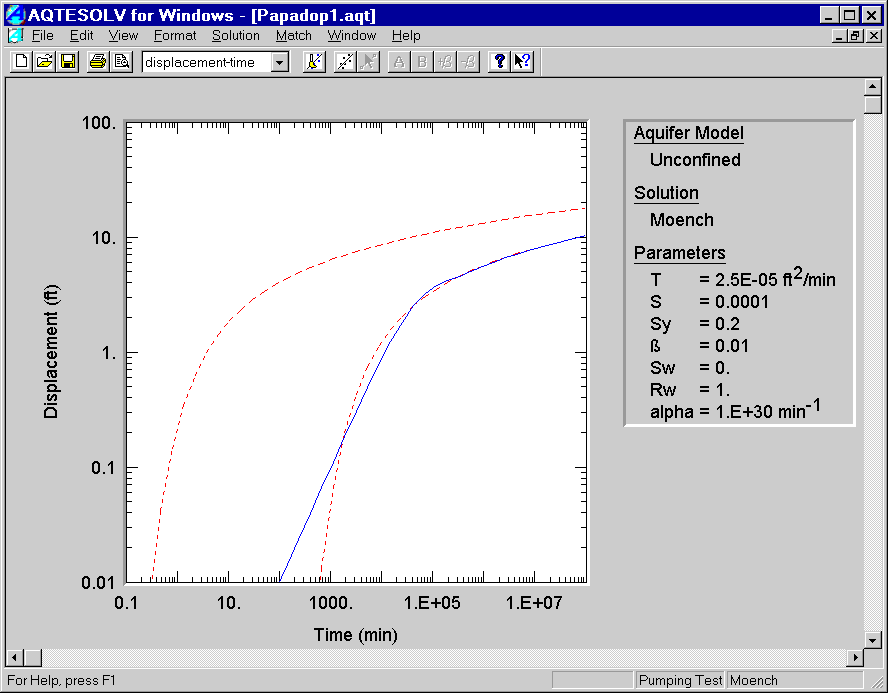

Moench Solution

The Moench (1997) solution for a pumping test in a unconfined aquifer includes delayed gravity response and wellbore storage.

*Type Curve Plot*		*Derivative Plot*
